Grade D Rotary & Vibrator Hose
Grade D rotary and vibrator hose assemblies are used for drilling-fluid transfer between moving rig components. Select configuration by working pressure, bore, length, routing and end connections.
| Reference working pressure | 5,000 PSI |
|---|---|
| Common inside diameters | 2, 2-1/2, 3, 3-1/2 and 4 in. |
| Reference temperature range | -20°F to 180°F |
| Length capability on reference sheet | Up to 150 ft, subject to configuration |
| Typical tube / cover | Nitrile tube; neoprene/PVC protective cover |

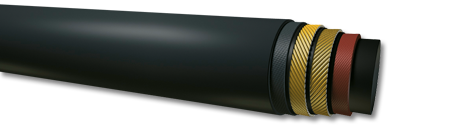

| Reinforcement | Multi-layer steel-wire spiral construction |
Reference configurations only. These values do not establish current availability, origin, certification, or suitability for your application. Obtain an assembly-specific quotation and manufacturer test documentation before use.

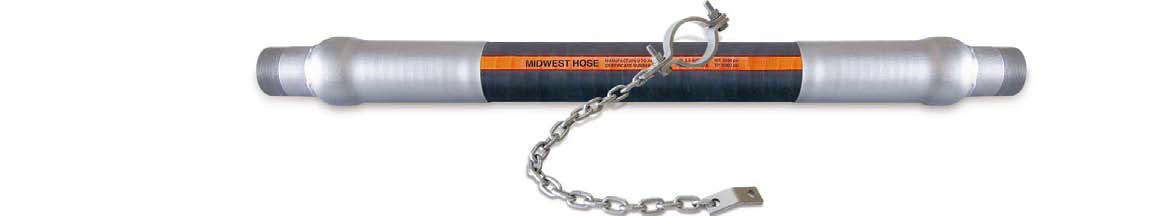

Original World Rig Supply Product Photos
Photographs recovered from our original technical catalog. Actual assemblies and available configurations are confirmed when quoting.
Overview & applications
Made in 2", 2-1/2" 3" 3-1/2" and 4" i.d with many end connection configurationsand in pressures up to 10,000 psi w.p. : Features: API 7K fsl2 Manufactured in the U.S.A.
Full line hoses and assemblies. Knowledgeable staff and friendly services. Email today for price quote
Kelly hose made to length at World rig supply.Kelly hoses are large inside diameter (3" to 4" i.d) high pressure flexible lines used to between the standpipe and the swivel. This flexible piping permits the kelly to be raised and lowered while drilling fluid is pumped through the drillstring. The simultaneous lowering of the drillstring while pumping fluid is very important to the drilling operation.
Made in 2", 2-1/2" 3" 3-1/2" and 4" i.d with many end connection configurationsand in pressures up to 10,000 psi w.p. Many in stock crated and ready for export.
Kelly Hose Features • API 7K fsl2 Construction • Reinforcement: Two high strength steel cables • Cover: Ozone, petroleum and abrasion resistance • Tube: Oil resistant for petroleum drilling fluids • End Fittings: API male nipples, threaded or buttweld hammer unions, unibolt, API flanges and other special connections. • Certification: API 7K • Maximum Length: 110 feet • Operating Temperatures: -22°F to 200°F (-30°C to 93°C) • Options: Available with S.S. armor and fire protection. Typical Application • Mud delivery hose, motion compensator hose, de-coking hose. • Oilfield, construction, mining and high performance industrial equipment. Grade D rotary and vibrator hose is manufactured with the highest quality material to handle the tough drilling applications of today’s industry.
Technical & ordering information
For an accurate quotation, provide the part number or product type, inside diameter or nominal size, working pressure, required length, end-connection specification, quantity, application, and delivery location. Certificates and testing requirements should be stated with the inquiry.
Some descriptions below come from the historic World Rig Supply catalog. Ratings, stock, manufacturer approvals, compliance, and lead times must be reconfirmed before ordering.
More information from our original product catalog
Available with API N.P.T threads and/or Hammer Union connection welded and threaded also availaible with flanged ends 5m 10m, RTJ,hubs,unibolts.
Operating temperature: -30 to + 82°C Maximum available length: 40 m Production length tolerance: +/- 64 mm up to 6.4 m hose length or +/- 1%
Specialty High Pressure Hoses. Rotary Hose Kelly Hose Vibrator Hoses Choke and kill Hose BOP Hose High pressure Hoses Shock Hose Jumper Hoses Flex Hose Fuel Hose Pressure Hose Braided Hose Metal Hose Hydraulic Hose Suction Hose Oil Hose Coflex style Hose Stainless Steel Hose cementing hose SAE 100 R13 Mud Hose Drilling Hose
